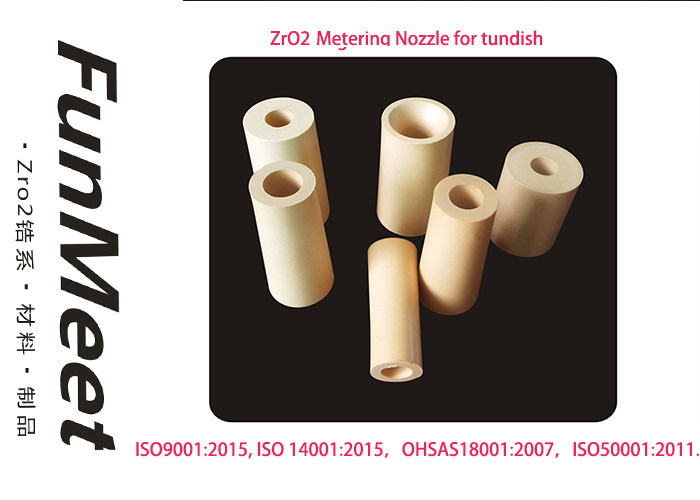

High Temperature 95% ZrO2 Metering Nozzle For Steel Industry

Name: High Temperature 95 ZrO2 Metering Nozzle For Steel Industry
Brand: FunMeet
Price: 1 USD

Brand Name : FunMeet

Model Number : FMXC-ZNPMO1-2

Certification : ISO9001:2015、ISO14001:2015、OHSAS18001:2007、ISO 50001:2011,etc.

Place of Origin : Zhengzhou, China

MOQ : 5000pcs

Price : coordinated by two parties

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs in one month

Delivery Time : with 30days after the deposit received

Packaging Details : carton in fumigation wooden box with protecting material wrapped firmly

Name : Metering Nozzle

ZrO2+HfO2 : not less than 95%

MgO : Not more than 3.0%

A. P. : 12-15%

B.D. : 5.0-5.1

Working life : 3-4 hours continuously

Usage : Steel Industry

Contact Now

High Temperature 95% ZrO2 Metering Nozzle For Steel Industry

Products Features:

Our Metering Nozzle (model no. is FMXC-ZN-PMO1-2) as flow controlling Refractories in the steel liquid and slag flowing lining, widely used in the large capacity of tundish in steel plant. It has the better quality quality, demand not very long working life with 5.0-5.1 g/cm3 bulk density, after embedded in the alumina and carbon or alumina body, can be used in the sliding system of ladle and continuous casting machine , do not desired to heat before using.Usually used for melting the common structuring steel products.

Inspection times in production process

1. After Mixing, inspect the water content of material,

2. After pressing, inspect the size,missing angle, etc. of semi-finished products

3. After sintering, inspect the size, missing angle, cave, etc. of finished products

4. Before packing, inspect the size, missing angle, cave,of the finished prodcuts again.

Chemical Composition and Physical Propeties

Model

Chemical Composition

Physical Properties

ZrO2

(%)

Al2O3

(%)

SiO2

(%)

MgO

(%)

Bulk Density

(g/cm3)

Apparent Porosity (%)

FMXC-ZNPMO1-02

93-95

----

2.7-2.9

5.0-5.1

12-15

Size Tolerance:

Middle Hole Diamter:+-0.2mm, other sizes: +-1mm.

Exported Countries

India, Pakistan, Iran, Thailand etc.

Fangming NewM's Goal

Large size, super special shaped super high temp. zirconia ceramics, we will offer the comprehensive and integrated super high temperature, strong crushing resistance, strong erosion resistance application condition solutions.
